Installation Guide

  • Wall-mounted with drill and screws

Tools you'll need:


  • Nyuair Hand Dryer wall mount kit
  • A screwdriver
  • A spirit level
  • An electric drill
  • A pencil

Steps:

Step 01

Identify a spot on the wall surface

Make sure the hand dryer be positioned at least 20cm away from any objects and reflecting obstacles.

Step 02

Mark the wall for mounting the bracket plate

Use a spirit level, place the bracket and pre-mark where you want to be drilling those three holes.

Step 03

Drill the holes


Use a spirit level, place the bracket and pre-mark where you want to be drilling those three holes.

Step 04

Secure the bracket to the wall


Put the bracket plate in line with the dots and insert the expansion tubes and screws to fully secure the bracket to the wall.

Step 05

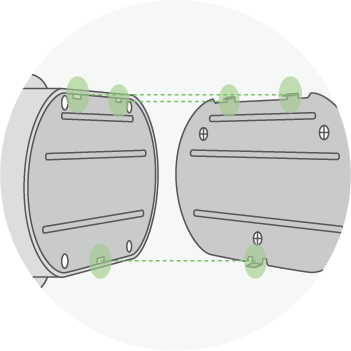

Put the Nyuair hand dryer on the bracket

Simply clip the hand dryer into the bracket as shown in the image.

Step 06

Secure the hand dryer and bracket with screws

Using your screwdriver, secure the hand dryer to the bracket.

  • Wall-mounted with glues

Tools you'll need:


  • Nyuair Hand Dryer wall mount kit
  • A screwdriver
  • A spirit level
  • A pencil

Steps:

Step 01

Identify a spot on the wall surface and mark it

Make sure the hand dryer be positioned at least 20cm away from any objects and reflecting obstacles. Use a spirit level. Use a pencil to lightly draw a straight line across the wall where you ‘ll want the back bracket plate to go. Clean the mounting surface.

Step 02

Mark the wall for mounting the bracket plate

Apply an even coat of glue (included in the kit) on the back of the bracket.

Step 03

Drill the holes

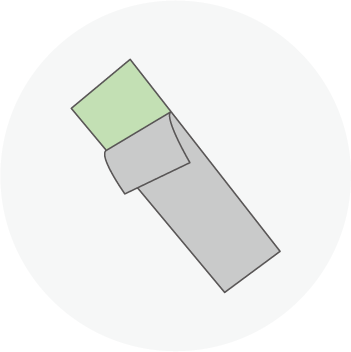

Tap a couple painter’s tape (included in the kit) tape onto the face of the bracket. Tape the bracket in place until the glue is set.

Step 04

Secure the bracket to the wall


Allow 72 hours for the glue to fully cure. Remove the painter’s tape.

Step 05

Put the Nyuair hand dryer on the bracket

Simply clip the hand dryer into the bracket as shown in the image.

Step 06

Secure the hand dryer and bracket with screws

Using your screwdriver, secure the hand dryer to the bracket.

  • Tabletop stand

Tools you'll need:


  • Nyuair Hand Dryer wall mount kit
  • A screwdriver

Steps:

Step 01

Align the bracket to the stand


Each bracket has three holes. Two at the top, one at the bottom.

Step 02

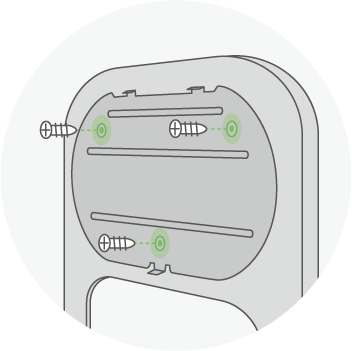

Secure the bracket to the stand with 3 screws

Screw the bracket into the stand. Bottom hole first, top two holes afterwards.

Step 03

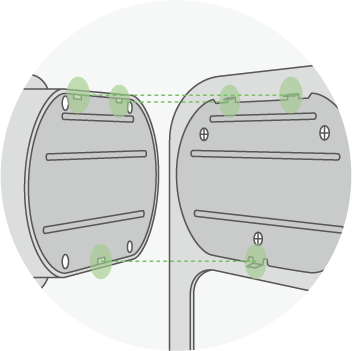

Install the hand dryer into the stand itself

Simply clip the hand dryer into the bracket as shown in the image.

Step 04

Secure the hand dryer and the stand with a single screw

Using your screwdriver, secure the hand dryer to the bracket, which has been attached to the stand already.

Step 05

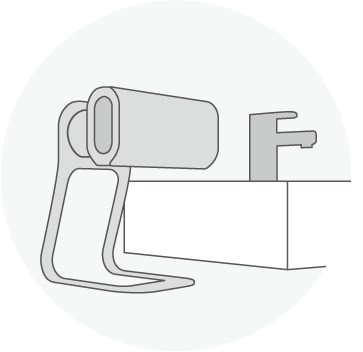

Place the Nyuair hand dryer where you want

Place the hand dryer upon the table or any flat top surface surface. Make sure the hand dryer be positioned at least 20cm away from any objects and reflecting obstacles.
